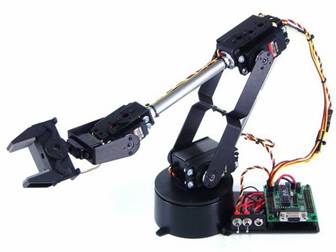

Education 5 Axis Robot Arm

Education 5 Axis Robot Arm

Model No. UAL-5

Specification:

1. This robot arm design 5 axis, 4 freedom action with gripper.

2. Model No. UAL 5A:

Robot arm forward reach 15 cm ( 5.9 inch ) and carry 110 grams weight.

Model No. UAL 5B:

Robot arm forward reach 19 cm ( 7.5 inch ) and carry 145 grams weight.

Model No. UAL 5C:

Robot arm forward reach 25 cm ( 10 inch ) and carry 185 grams weight.

Model No. UAL 5D:

Robot arm forward reach 26 cm ( 10.25 inch ) and carry 368 grams weight.

3. Range of motion per axis 180 degrees

4. Location can reach precision 1 mm. back and forth precision reach 2 mm.

5. Rotate chassis used two layers design, let rotate motion more smooth.

6. Can be fixing on self-propelled small car or robot, light weight and good control.

7. Clip claw can according to client design.

8. Three color for optional ( blue, green, black ), suit to commodities show or school

monographic study.

9. Including servo controller and relation PC application of exemplification formula.

10. Visual Basic with SSC-32 exemplification formula, and directly control by PC.

11. Optional accessories : Power supply ( including Adapter, RS232 to USB connector cable, RS232 - 1.8 m. cable )
